第六代Intel® Core™及Intel® Q170- 支持 DDR4 SODIMM 高達32GB
- 三個獨立顯示: 1 VGA + 1 DVI/HDMI + 1 HDMI/DP
- 支持 4 PoE G網口 及1個擴充插槽
- 2 Mini PCIe slots 支持 mSATA 及 Wi-Fi 模塊
- 15年CPU長期支持
狀態 : 上市產品
系統
處理器
6th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® Core™ i7-6700TE, Quad Core, 8M Cache, 2.4GHz (3.4GHz), 35W
Intel® Core™ i5-6500TE, Quad Core, 6M Cache, 2.3GHz (3.3GHz), 35W
Intel® Core™ i3-6100TE, Dual Core, 4M Cache, 2.7GHz, 35W
芯片組
Intel® Q170 Chipset
內存
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 1866/2133MHz
BIOS
Insyde SPI 128Mbit
顯示
控制器
Intel® HD Gen 9 Graphics
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
顯示器
1 x VGA
1 x DVI (DVI-D signal)/HDMI (HDMI available upon request)
1 x HDMI/DP (DP available upon request)
1 x HDMI/DP (DP available upon request)
VGA: resolution up to 1920x1200 @ 60Hz
DVI-I: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz or 2560x1600 @ 60Hz
DP: resolution up to 4096x2304 @ 60Hz
三重顯示
VGA + DVI (DVI-D signal) + HDMI
VGA + DVI (DVI-D signal) + DP
VGA + 2 HDMI
VGA + HDMI + DP
儲存
外插/內插
2 x 2.5" SATA 3.0 Drive Bay (RAID 0/1)
擴充
界面
1 x Full-size Mini PCIe (PCIe/USB)
1 x Half-size Mini PCIe (USB/mSATA)
1 x PCI (EC510-SD)
1 x PCIe x16 (EC511-SD)
以太網絡
控制器
1 x Intel® I211AT PCIe (10/100/1000Mbps)
4 x Intel® I210IT PCIe (10/100/1000Mbps)
1 x Intel® I219V with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
LED
指示燈
1 x Power LED
1 x HDD LED
背板輸入/輸出
以太網絡
6 x GbE (RJ-45) or
2 x GbE (RJ-45) + 4 x PoE GbE (RJ-45) (supports IEEE 802.3af, 15.4W per port)
串口
2 x RS-232/422/485 (DB-9) (RS-232 with power)
1 x RS-232/422/485 (DB-9)
USB
4 x USB 3.0 (type A)
DIO
1 x 16-bit DIO
顯示
1 x VGA
1 x DVI (DVI-D signal)/HDMI (HDMI available upon request)
1 x HDMI/DP (DP available upon request)
音源
1 x Line-out
1 x Mic-in
按鍵
1 x Power Button
1 x Reset Button
監視定時器
看門狗定時器
System Reset, Programmable via Software from 1 to 255 Seconds
電源
類型
Wide Range 9~36V
端口
3-pole Terminal Block
支持操作系統
支持操作系統
Windows 7 (32/64-bit)
Windows 10
Windows 8.1 (64-bit)
環境指標
運作溫度
0 to 50°C (SSD or mSATA-mini, with 0.7m/s air flow)
儲存溫度
-20 to 85°C
相對濕度
5 to 95% RH (non-condensing)
機械結構
結構
Aluminum + SGCC
安裝方式
Wall Mount
尺寸 (寬 x 高 x 深)
235mm x 102.5mm x 222mm
重量
4.1 kg
安規認證
沖擊測試
Half sine wave 3G, 11ms, 3 shock per axis
抗振動測試
IEC68-2-64
認證
CE, FCC Class A, RoHS
裝箱單
裝箱單

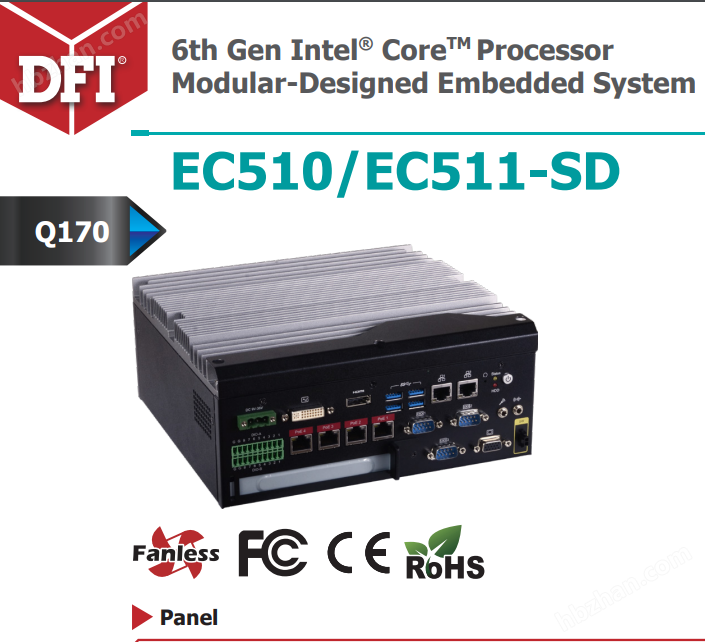

1 EC510/EC511-SD system unit
1 Quick Installation Guide
1 CD disk includes: Drivers / Manual
